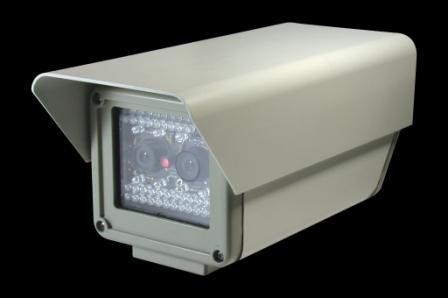

TCD-30M4
Outdoor, dual CCD, infra-red,
day/night camera
Features
• 1/3” dual CCD colour and mono camera
• Built in 49 IR LEDs allow vision in complete darkness up to
30 metres
• Superior focal quality during both day & night, due to
dual CCD technology
• Fully weatherproof, solid aluminium housing and bracket
• Lens 6mm (Horizontal field of view approximately 44 degrees)
• Colour camera >460TVL, Mono camera >420TVL
• Automatic switching of colour to mono camera and IR activation
at 9 Lux
• 90-260vAC
 TCD-30M4
|
 |

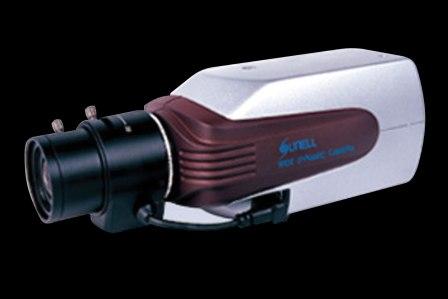

SN-586C
1/3" Super Wide Dynamic
range, colour/ mono camera
Features
• 1/3" DPS (Digital pixel system) wide dynamic sensor
• Super wide Dynamic Range using state of the art PIXIM technology
• High resolution 480TV Lines
• Super low light levels 1.0lux/ F1.2 in colour then 0.08lux/
F1.2 in mono
• Video drive/ direct drive lens compatible
• AES, AGC, WDR, BLC, Title, OSD mode, B/w mode & mirror function
• 12Vdc/ 24Vac
SN-586C
|
 |

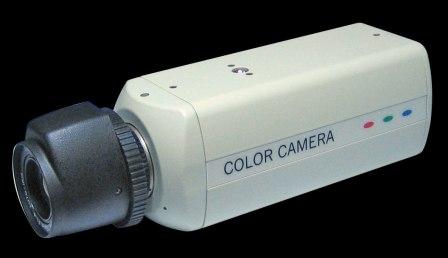

4323-AC
Ultra high resolution, super
low-lux, colour camera
Features
• 1/3" new Sony HQ1 CCD colour camera
• Ultra High resolution @ 520TV Lines
• Super low light capabilities down to 0.06lux/ F1.5
• Video drive/ direct drive lens compatible
• AGC/ AES/ BLC
• 240Vac
4323-AC
|
 |
3i23-369
High resolution, varifocal,
infra-red, colour/ mono camera
Features
• 1/3" Sony CCD dome camera
• High resolution @ 480TV Lines
• Varifocal 3.6-9mm, auto-iris lens
• Advanced dual IR cut filter produces perfect colour reproduction
day & night
• Built in IR LEDs allow vision in complete darkness up to 15
metres
• 12Vdc
3i23-369
|
| |
Ei23-30
Ultra high resolution, infra-red,
colour/ mono bullet camera
Features
• 1/3" new Sony HQ1 CCD bullet camera
• Ultra high resolution @ 520TV Lines
• Built in 30 IR LEDs, allows vision in complete darkness up to
20 metres
• Fully weatherproof for both internal & external use (IP66)
• Lens 4.3mm (Horizontal field of view approximately 60 degrees)
• Wall mount bracket included, 12Vdc
Ei23-30
|
 |

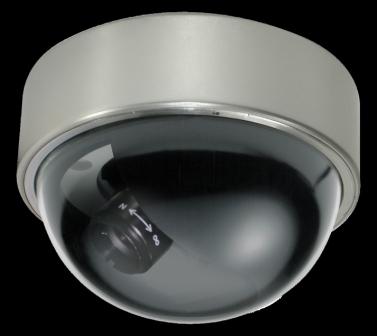

TCD-03G4/P & TCD-20G4
Varifocal, vandal-resistant,
weatherproof dome camera
TCD-03G4/P - Colour dome >460TVL
TCD-20G4 - Mono dome >580TVL
Features
• 1/3” CCD dome camera
• Varifocal, 4-9mm auto-iris lens
• Vandal resistant able to withstand up to a 10 pound sledgehammer
• Fully weatherproof for both internal & external use (IP66)
• Unique full internal pivot bracket allows wall or ceiling mounting
• Attractive solid chrome base and reinforced dome cover
• 12vDC
TCD-03G4/P
TCD-20G4
|
| |

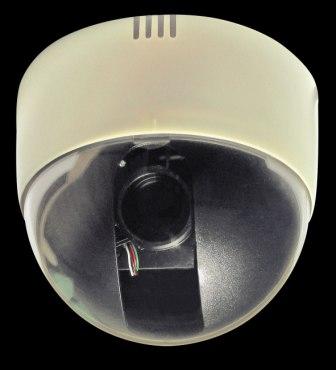

LD23-358
Ultra high resolution, super
low-lux, varifocal, colour dome camera
Features
• 1/3" new Sony HQ1 CCD dome camera
• Ultra high resolution @ 520TV Lines
• Super low light capabilities down to 0.06lux/ F1.5
• Varifocal 3.5-8mm, auto-iris lens
• Suitable for internal use
• White durable plastic base
• 12vDC
LD23-358
|
 |

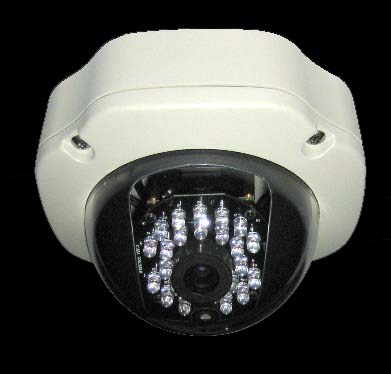

OI23-369
Ultra high resolution, Infra-red,
varifocal, vandal-resistant, colour/ mono dome camera
Features
• 1/3" new Sony HQ1 CCD dome camera
• Ultra high resolution @ 520TV Lines
• Varifocal 3.6-9mm, auto-iris lens
• Advanced dual IR cut filter makes perfect day and night performance
• Built in IR LEDs allow vision in complete darkness up to 15
metres
• Vandal resistant, able to withstand up to a 10 pound sledge
hammer
• Fully weatherproof for both internal & external use (IP66)
• 3-axis internal pivot allows wall or ceiling mounting
• White reinforced polycarbonate base, 12Vdc
OI23-369
|
 |

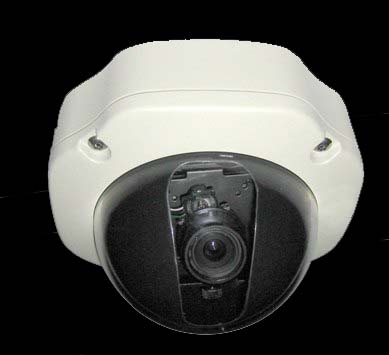

OV23-369
Ultra high resolution, super
low-lux, varifocal, vandal-resistant, colour/ mono dome camera
Features
• 1/3" new Sony HQ1 CCD dome camera
• Ultra high resolution @ 520TV Lines
• Super low light capabilities down to 0.06lux/ F1.5
• Varifocal 3.6-9mm, auto-iris lens
• Advanced dual IR cut filter makes perfect day and night performance
• Vandal resistant, able to withstand up to a 10 pound sledge
hammer
• Fully weatherproof for both internal & external use (IP66)
• 3-axis internal pivot allows wall or ceiling mounting
• White reinforced polycarbonate base, 12Vdc
OV23-369
|
 |
|
 |
|
